EMC Cable Gland – PG Threaded Single Compression
A1/A2 Cable Gland

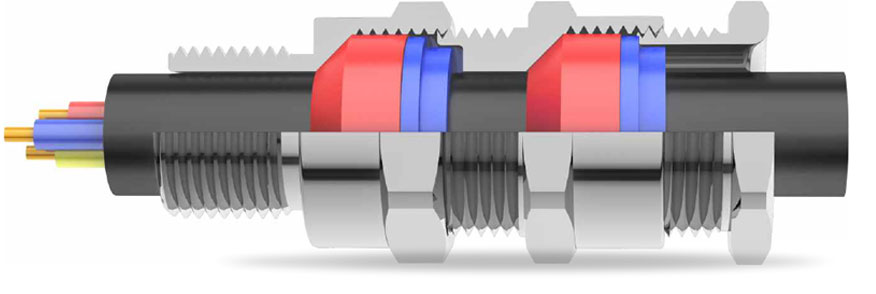

A2F DC Double Compression Unarmoured Cable Gland
|
Type
|

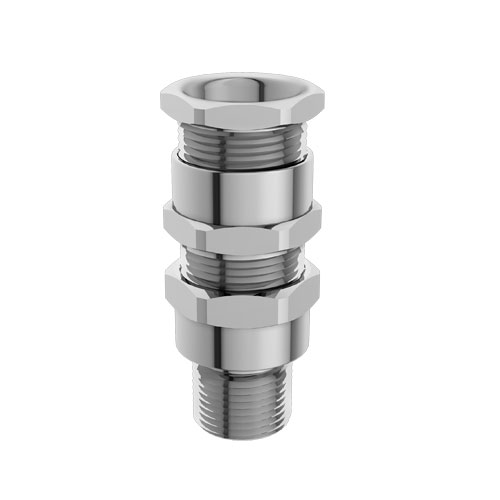

A2F-DC Double Compression Cable Gland
|
|
Cable Types
|
Unarmoured
|
|
Application
|
For indoor and outdoor use with all types of unarmoured cable where it is essential to provide IP66 or IP68 protection on the outer sheath of cable for circular, Unarmoured plastic or rubber sheathed cables.
|
|
Option Thread
|
Metric, NPT
|
|
Gland Material
|
Brass Natural Finish : B1 Brass Nickel Plated : B2 Electro Less Nickel Plated : B3 SS304 : X4 SS316L : X6
|
|
IP Rating
|
IP66 & IP68
|
|
Sealing Ring
|
Double Compression Sealing
|
|
Operating Temperature
|
Silicone Seals : -60oC < Ta < +1300C
|
|
Finish
|
Natural Brass or Nickel Plated
|
|

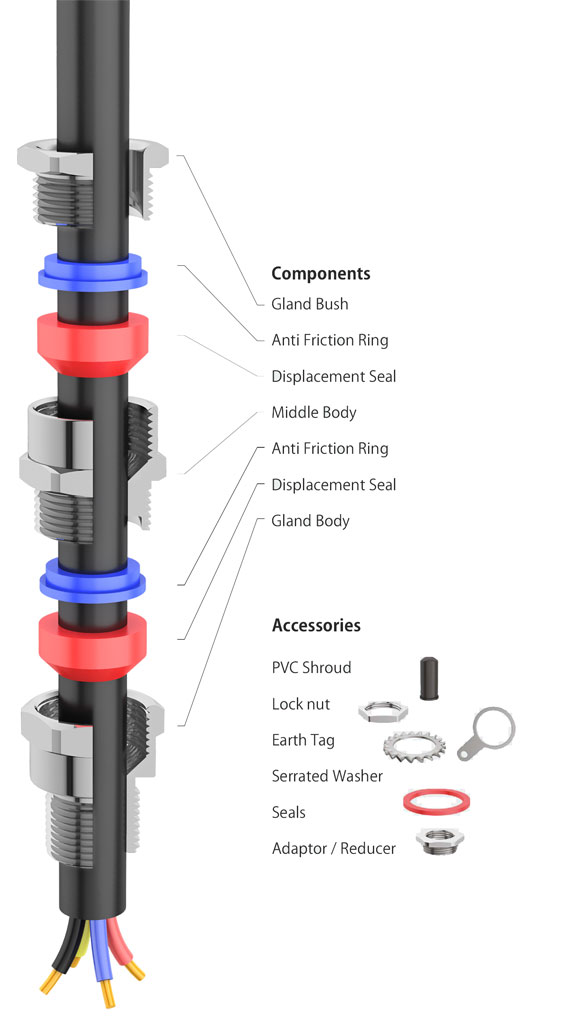

Accessories
|
PVC Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer
|

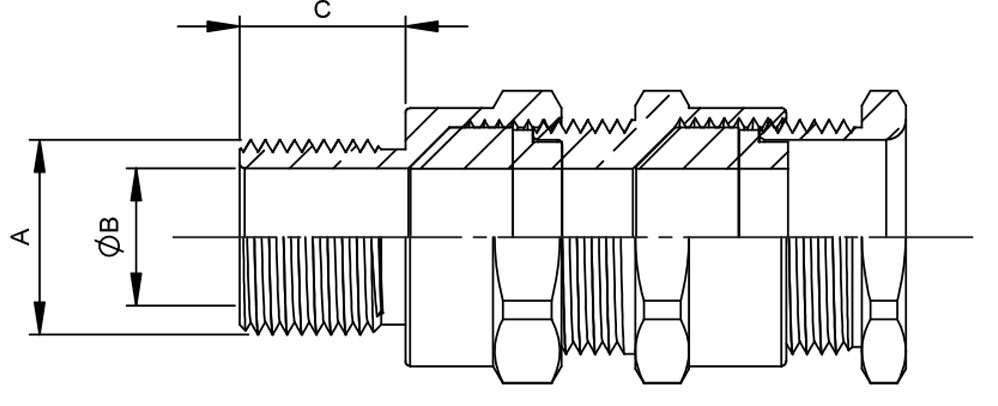

Size Chart / Specification
| CODE |
CABLE GLAND SIZE |
ENTRYTHREAD "A" |
THREAD LENGTH "C" |
CABLE DIAMETER "B" |
ACROSSFLAT |
ACROSSCORNER |
| METRIC |
NPT |
OPTIONAL NPT |
METRIC |
NPT |
MIN |
MAX |
| MM-A2FDC-20S16 |
20S16 |
M20 |
1/2" |
3/4" |
17 |
20 |
3.2 |
8.5 |
25 |
27.5 |
| MM-A2FDC-20S |
20S |
M20 |
1/2" |
3/4" |
17 |
20 |
6.2 |
11.6 |
25 |
27.5 |
| MM-A2FDC-20 |
20 |
M20 |
1/2" |
3/4" |
17 |
20 |
8.0 |
13.9 |
27 |
30 |
| MM-A2FDC-25 |
25 |
M25 |
3/4" |
1" |
17 |
21 |
11.2 |
19.6 |
36 |
40 |
| MM-A2FDC-32 |
32 |
M32 |
1" |
1.1/4" |
17 |
26 |
17.1 |
26.0 |
42 |
46 |
| MM-A2FDC-40 |
40 |
M40 |
11/4" |
1.1/2" |
17 |
26 |
23.6 |
31.6 |
50 |
55 |
| MM-A2FDC-50S |
50S |
M50 |
11/2" |
2" |
17 |
26 |
31.1 |
37.5 |
55 |
60 |
| MM-A2FDC-50L |
50 |
M50 |
2" |
2.1/2" |
17 |
27 |
35.7 |
43.1 |
60/61 |
65 |
| MM-A2FDC-63S |
63S |
M63 |
2" |
2.1/2" |
17 |
27 |
41.6 |
48.7 |
70 |
77 |
| MM-A2FDC-63L |
63 |
M63 |
21/2" |
3" |
17 |
40 |
47.3 |
55.2 |
74 |
81 |
| MM-A2FDC-75S |
75S |
M75 |
21/2" |
3" |
17 |
40 |
54.1 |
61.2 |
80 |
87 |
| MM-A2FDC-75L |
75 |
M75 |
3" |
3.1/2" |
17 |
42 |
61.2 |
67.2 |
85/91 |
93/98.5 |
| MM-A2FDC-90 |
90 |
M90 |
31/2" |
4" |
24 |
44 |
66.7 |
79.2 |
108 |
116 |
- All the dimensions given are in Millimeters (mm)
- Can be also provided in Kit Packing as per requirement
Disclaimer: Product sizes mentioned in the catalogue are for reference purpose only. The actual dimensional details would be available only after request based on the actual requirement.
