Ex e Breather Drain Plug
Breather Plug also known as Breather Drain or Breather Vent Plug or Conduit Drain is widely used in hazardous area electrical enclosures.
Metalmech Ex e (Increased Safety) Breather Drain Plugs are designed for hazardous areas, suitable for Gas Zone 1 & Zone 2 (Gb / Gc) and Dust Zone 21 & Zone 22 (Db / Dc) environments. These ATEX and IECEx certified explosion-protected breather drain plugs allow pressure equalization and effective drainage of condensation while maintaining the integrity of IP66/IP67 rated electrical enclosures. Ex e breather drains are made from brass or stainless steel and available in metric (M16, M20, M25) and NPT thread types.
| IP Rating | IP66 |
|---|---|
| lECEx Ex e Certificate No. | IECEx DNV 25.0140X |
| ATEX Ex e Certificate No. | DNV 25 ATEX 27167 X |
| EAC Certificate No. | Certification in Progress |
| PESO Certificate No. | Certification in Progress |
| Thread Type | Metric & NPT |
| Protection Type | Ex e, Ex t |
| Material | Brass (CuZn39Pb3), Stainless Steel (SS304/SS316L) |
| Finishing | Natural Brass or Nickel Plated |
| Accessories | Teflon Washer, Castellated Locknut |
| Ambient | lECEx/ATEX : -55° C < Ta < +160° C |
|---|---|
| Temperature | EAC : -60° C < Ta < +130° C |
| Gas Group | II A, II B |
| EPL (Equipment Protection Level) | Gas Zone 1 & Zone 2 (Gb / Gc) and Dust Zone 21 & Zone 22 (Db / Dc) environments |
| Material Code | Brass Natural Finish : B1 Brass Nickel Plated : B2 Electro Less Nickel Plated : B3 SS304 : X4 SS316L : X6 |

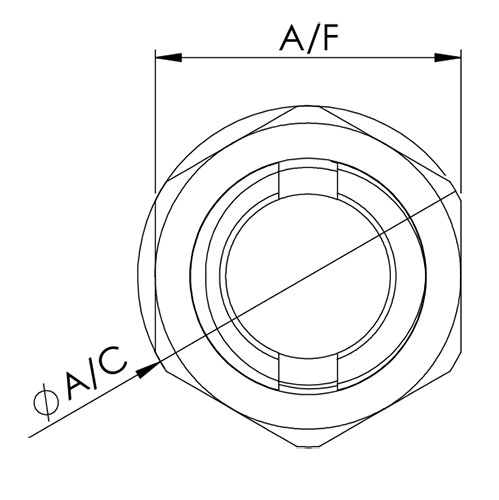

Breather Plug Ex-e Specification
| CODE | THREAD SIZE 'A' | THREAD LENGTH 'L' | PROTRUSION LENGTH 'F' | HEXAGON SIZE | ||
|---|---|---|---|---|---|---|
| Ex "e" | METRIC | NPT | A/F | A/C | ||
| MM-BRE-0 | M16x1.5 | 3/8" | 15.00 | 10.00 | 20.00 | 22.00 |
| MM-BRE-1 | M20x1.5 | 1/2" | 15.00 | 10.00 | 26.00 | 29.00 |
| MM-BRE-2 | M25x1.5 | 3/4" | 15.00 | 10.00 | 30.00 | 33.00 |
