Plug Collar Type For Cable Gland
| MATERIAL | BRASS BS 2874 CZ121 PB3 |
|---|---|
| FINISH OPTION | BRASS NICKEL PLATED |
| THREAD | METRIC, ET, NPT & PG |

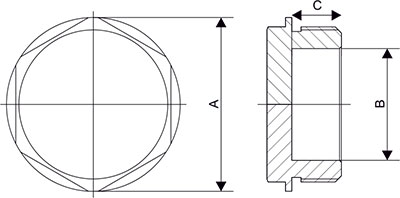

| CODE | SIZE | A | B | C |
|---|---|---|---|---|
| MM-SP-PLG12 | M12 | 15 | 5 | 7 |
| MM-SP-PLG16 | M16 | 19 | 9 | 7 |
| MM-SP-PLG20 | M20 | 22 | 13 | 7 |
| MM-SP-PLG25 | M25 | 28 | 18 | 8 |
| MM-SP-PLG32 | M32 | 36.5 | 25 | 8 |
| MM-SP-PLG40 | M40 | 43 | 33 | 9 |
| MM-SP-PLG50 | M50 | 54 | 43 | 10 |
| MM-SP-PLG63 | M63 | 67 | 56 | 10 |
| MM-SP-PLG75 | M75 | 80 | 68 | 12 |
| MATERIAL | BRASS BS 2874 CZ121 PB3 |
|---|---|
| FINISH OPTION | BRASS NICKEL PLATED |
| THREAD | METRIC, ET, NPT & PG |
| CODE | SIZE | A | B | C |
|---|---|---|---|---|
| MM-SP-PLG00 | 3/8” NPT | 19 | 9 | 7 |
| MM-SP-PLG01 | 1/2” NPT | 22 | 13 | 7 |
| MM-SP-PLG02 | 3/4” NPT | 28 | 18 | 8 |
| MM-SP-PLG03 | 1” NPT | 36.5 | 25 | 8 |
| MM-SP-PLG04 | 1.1/4” NPT | 43 | 33 | 9 |
| MM-SP-PLG05 | 1.1/2” NPT | 54 | 43 | 10 |
| MM-SP-PLG06 | 2” NPT | 67 | 56 | 10 |
| MM-SP-PLG07 | 2.1/2” NPT | 80 | 68 | 12 |
| MM-SP-PLG08 | 3” NPT | 90 | 78 | 14 |
