Stainless Steel Enclosures

IP66 Stainless Steel
Enclosure (Junction box)

manufacturer & supplier of Enclosures, Stainless Steel Enclosures, IP66 Electrical Enclosures, Explosion Proof Enclosures, Flameproof Stainless Steel Junction Box with IP66 Protection

SS Electrical Enclosure (Junction Box) Manufacturer

We are India's leading manufacturer, supplier, and exporter of Explosion Proof Enclosure also known as Electrical Junction Box.

IECEx & ATEX certified explosion proof junction boxes in SS304, SS316 & mild steel. DNV-certified, IP66-rated, suitable for gas (Group IIC) & dust (Group IIIC) hazardous zones.

The MM EE Series and MM JB Series Explosion Proof Enclosures are small and medium-sized enclosures, entirely made of stainless-steel material for applications in the oil and gas sector. They are used in harsh environments and offer the maximum protection to the installed components.

ATEX Ex e Certificate No: DNV 25 ATEX 27171 U
IECEx Ex e Certificate No: IECEx DNV 25.0154U

Features of Enclosure

IP66 rated boxes made of AIS I 316L or other special steel materials.
Enclosure thickness of 1.2mm to 4mm.
Body with welded and finished corners.
Door opening at minimum 120° with stainless steel inner hinges, quarter turn tubular lock alternatively cover locking screws,welded and finished corners.
Silicone rubber gasket permits service-temperaturerange of -50°Cto +140°C.
Stainless steel sheet metal plate 2mm thick for mounting internal components/ DIN rails.
Stainless steel screws.
These enclosures feature the necessary earthing system. In addition to the internal earthing, the external earthing screw fitted for on-site earthing of the enclosures.
Fine external Matte finish & Natural buff finish.
Available as an “Ex component” (U approval)empty enclosure or as a fully certified enclosure-“Ex Equipment” including the installation of terminals.
One or more gland plates or without gland plates.
Integrated fixing brackets assure easy fixing.

Explosion Protection for Empty Enclosures (“U” Approval):

II G D
Ex eb IIC Gb
Ex tb IIIC Db IP66

Explosion Protection for Junction Box Enclosures:

II G D
Ex eb IIC Gb
Ex tb IIIC Db IP66

Explosion Protection for Junction Box Enclosures:

II G D
Ex eb IIC T6…T3 Gb - Enclosures with Ex eb terminals
Ex tb IIIC T85°C…T200°C Db IP66
Ex eb ib IIC T6…T3 Gb - Enclosures with IS and Non-IS terminals
Ex tb IIIC T85°C…T200°C Db IP66
Ex ib IIC T6…T3 Gb - Enclosures with Ex i terminals
Ex tb IIIC T85°C…T200°C Db IP66
Ex ec nA IIC T6…T3 Gc - Enclosures with Fuse terminals
Ex tb IIIC T85°C…T200°C Db IP66

* Box With Hinged Door, tubular Door Lock/ Door Locking Screw And without Gland Plate Arrangement

IP66 Stainless Steel Enclosures

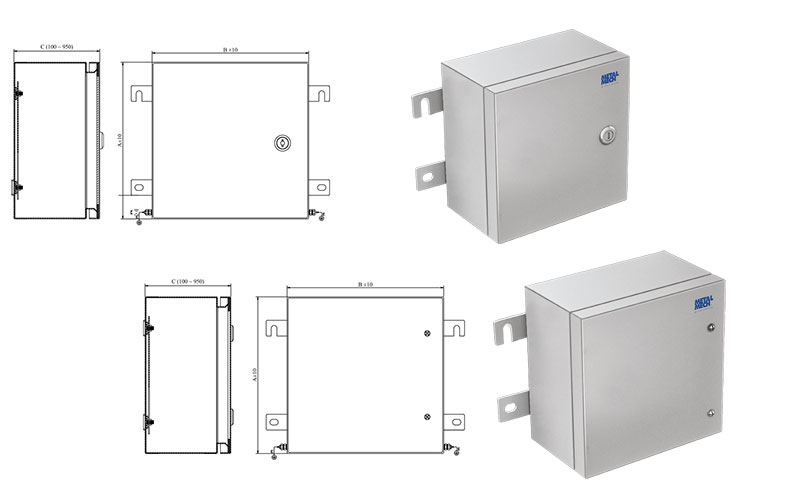

Box With Hinged Door, Tubular Door Lock/ Door Locking Screw And without Gland Plate Arrangement

Stainless Steel Enclosures Dimensions chart:

Models	Sizes	Dimensions			Weight
Models	Sizes	A ±3	B ±3	C ±5	Weight
MM EE 01151510	150x150x100	150	150	100	2.10 Kgs
MM EE 01202012	200x200x120	200	200	120	3.25 Kgs
MM EE 01203012	200x300x120	200	300	120	4.25 Kgs
MM EE 01252514	250x250x140	250	250	140	4.80 Kgs
MM EE 01303012	300x300x120	300	300	120	5.80 Kgs
MM EE 01303514	300x350x140	300	350	140	6.85 Kgs
MM EE 01383816	380x380x160	380	380	160	9.20 Kgs
MM EE 01404016	400x400x160	400	400	160	10.00 Kgs
MM EE 01504016	500x400x160	500	400	160	12.00 Kgs
MM EE 01505020	500x500x200	500	500	200	15.50 Kgs
MM EE 01605021	600x500x210	600	500	210	18.20 Kgs
MM EE 01606021	600x600x210	600	600	210	21.30 Kgs
MM EE 01656521	650x650x210	650	650	210	24.20 Kgs
MM EE 01806025	800x600x250	800	600	250	28.40 Kgs

IP66 Stainless Steel Enclosures

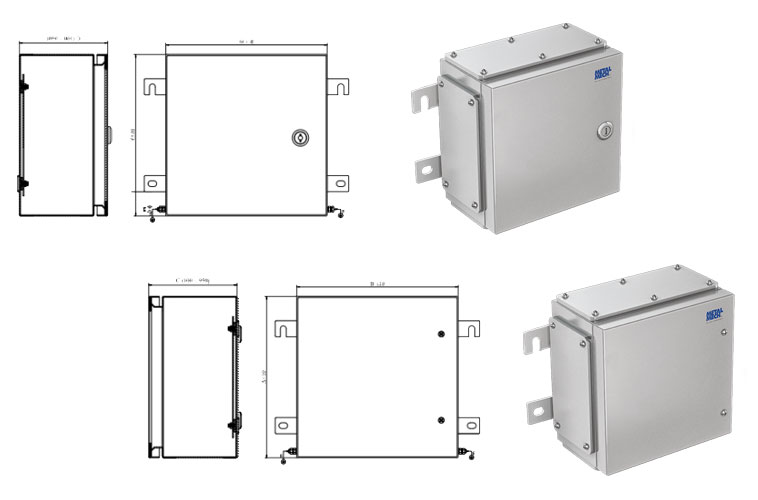

Junction Box With Hinged Door, Tubular Door Lock/ Door Locking Screw And with Gland Plate Arrangement

Stainless Steel Enclosures Dimensions chart:

Models	Sizes	Dimensions			Weight
Models	Sizes	A ±3	B ±3	C ±5	Weight
MM EE 01151510	150x150x100	150	150	100	2.10 Kgs
MM EE 01202012	200x200x120	200	200	120	3.55 Kgs
MM EE 01203012	200x300x120	200	300	120	4.95 Kgs
MM EE 01252514	250x250x140	250	250	140	5.20 Kgs
MM EE 01303012	300x300x120	300	300	120	6.45 Kgs
MM EE 01303514	300x350x140	300	350	140	7.10 Kgs
MM EE 01383816	380x380x160	380	380	160	10.20 Kgs
MM EE 01404016	400x400x160	400	400	160	10.45 Kgs
MM EE 01504016	500x400x160	500	400	160	13.25 Kgs
MM EE 01505020	500x500x200	500	500	200	17.20 Kgs
MM EE 01605021	600x500x210	600	500	210	20.00 Kgs
MM EE 01606021	600x600x210	600	600	210	23.30 Kgs
MM EE 01656521	650x650x210	650	650	210	26.45 Kgs
MM EE 01806025	800x600x250	800	600	250	30.75 Kgs

IP66 Stainless Steel Enclosures

Box With Standard Door, Door Locking Screws And With No Gland Plate Arrangement

Stainless Steel Enclosures Dimensions chart:

Models	Sizes	Dimensions			Weight
Models	Sizes	A ±3	B ±3	C ±5	Weight
MM EE 01151510	150x150x100	150	150	100	2.10 Kgs
MM EE 01202012	200x200x120	200	200	120	3.25 Kgs
MM EE 01203012	200x300x120	200	300	120	4.25 Kgs
MM EE 01252514	250x250x140	250	250	140	4.80 Kgs
MM EE 01303012	300x300x120	300	300	120	5.80 Kgs
