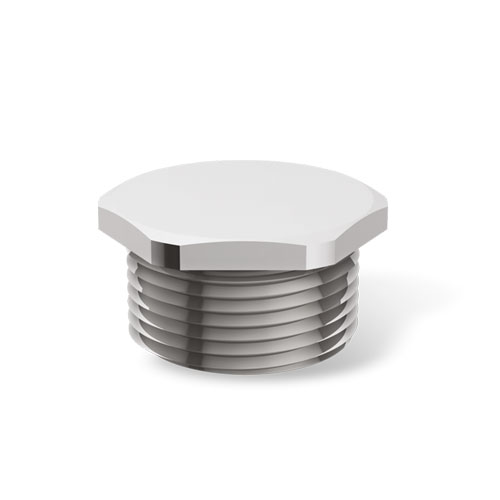

Hexagon Head Stopper Plugs
We manufacture Hexagon Head Stopping Plugs for Zone 1, Zone 2 Gb, Gc, Gas Zone 21, Zone 22 Db, Dc Dust.
| IP Rating | IP66/68 |
| lECEx Certificate No. | lECEx KLCS 25.0040X |
| ATEX Certificate No. | KLEX 25 ATEX 0017X |
| Thread Type | Metric/NPT |
| Protection Type | Ex eb llC Gb Ex tb lllC Db |
| Material | : Brass (CuZn39Pb3), Stainless Steel (SS304/SS316L) |
| Finish | : Natural Brass or Nickel Plated |
| Ambient Temperature | : lECEx/ATEX: -60° C < Ta < +160° C |
| Gas Group | : IIC |
| EPL (Equipment Protection Level) | : Zone 1, Zone 2 Gb, Gc, Gas Zone 21, Zone 22 Db, Dc Dust |
Thread Metric

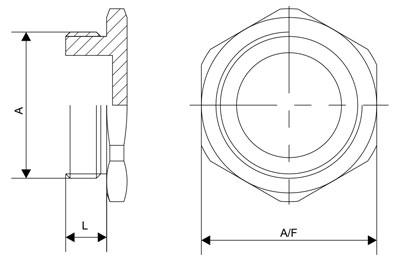

| CODE | A | L | A/F |
| HPL0M | M16 | 16 | 22 |
| HPL1M | M20 | 16 | 25 |
| HPL2M | M25 | 16 | 30 |
| HPL3M | M32 | 16 | 36 |
| HPL4M | M40 | 16 | 45 |
| HPL5M | M50 | 16 | 55 |
| HPL6M | M63 | 16 | 68 |
| HPL7M | M75 | 20 | 80 |
| HPL8M | M90 | 20 | 100 |
Thread NPT
| CODE | A | L | A/F |
| HPL0N | 3/8" | 16 | 20 |
| HPL1N | 1/2" | 21 | 25 |
| HPL2N | 3/4" | 21 | 30 |
| HPL3N | 1" | 26 | 36 |
| HPL4N | 1.1/4" | 26 | 45 |
| HPL5N | 1.1/2" | 27 | 55 |
| HPL6N | 2" | 28 | 68 |
| HPL7N | 2.1/2" | 41 | 80 |
| HPL8N | 3" | 42 | 100 |
